Online UPS

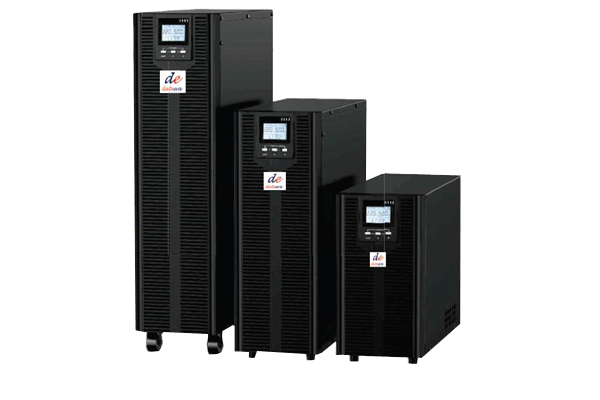

DX900-G4-Series
DX900-G4-Series Features
Advanced DSP control and 3-Level technology
Output power factor 1.0
Active Power factor correction (APFC), input power factor upto 0.99
High efficiency 95% (up to 98% in ECO mode)
Advanced digital parallel technology
Wide input range(100 ~ 499 VAC) and frequency range (40 ~ 70 Hz)
50Hz / 60Hz frequency auto sensing
Two modes of frequency conversion: 50Hz input / 60Hz output or 60Hz input / 50Hz output | ECO mode
Dual input design, supporting independent bypass
Flexible battery configuration (settable 10-20 pcs batteries)
Digitally controlled charger
High charging current available (Max.10A)
Charging voltage and current configurted by demands
Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%
Ability to switch on the UPS with batteries
Fan speed varies intelligently with temperature, reducing noise and extending its service life
Equipped with self-aging function
Compact internal layout, miniaturized the complete unit for small footprint
LCD+LED display, multi functional keys operation, friendly human-machine interface
Powerful bachground software for parameters configuration
Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces
Effective Software and Hardware protection function, robust self-diagnostic function, and abundant event log for check
Availabe RS232 and Smart-Card slot included, Optional Parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms
| MODEL | DX9010 (3:1) | DX9015 (3:1) | DX9020 (3:1) |
|---|---|---|---|
| Capacity | 10KVA/10kW | 15KVA/15kW | 20KVA/20kW |
| Input | |||
| Input wiring | 3-Phase 5-Wire (3ϕ+N+PE) | ||
| Rated Voltage | 380/400/415 VAC | ||
| Voltage Range | 190~305 VAC (linear derating between 50% and 100% load);, 305~499 VAC)(No derating) | ||
| Rated Frequency | 50Hz/60Hz (auto-sensing) | ||
| Frequency Range | 40Hz~70Hz | ||
| Power Factor | ≥0.99 | ||
| THDi | ≤5% | ||
| Bypass input Voltage Range | -40%~+15% (Settable) | ||
| Output | |||
| Output Wiring | 3-Phase 5-Wire (3ϕ+N+PE) | ||
| Rated Voltage | 208(PF=0.9)/220/230/240 VAC | ||
| Voltage Regulation Accuracy | ±1% | ||
| Frequency Accuracy | Synchronized to bypass in mains mode;50Hz/60Hz ±0.1% in battery mode | ||
| Waveform | Sinusoidal | ||
| Output Power Factor | 1 | ||
| THDv | ≤1%(Linear Load); ≤3% (Non-Linear Load) | ||
| Crest Factor | 3:1 | ||
| Overload | 105% |
|
| |
| Battery | |||
| DC Voltage | 120 VDC(120 ~ 240 VDC Variable) | ||
| No.of Battery | 10 pcs(10 ~ 20 settable) | ||
| In-built Battery (Standard Model) | 12V/9AH x 10 | / | / |
| Charging Current | Standard Model: 1A; Long time Model: 5A (default), 1A~5A settable, 12A optional | ||
| Recharge Time | Standard Model: 90% capacity restored in 8 Hours; Long-Time Model: depend on the capacity of battery | ||
| System | |||
| Max Efficeincy | ≥94% at 100% Load, Max. 95% at 60% Load, ≥98% in ECO mode | ||
| Transfer time | 0 ms | ||
| Max No.of Parallel connections | 4 | ||
| Protections | Shor-Circuit, Overload, Over Temp, Battery Low Voltage, Under Voltage, Over Voltage and Fan Failure Protection | ||
| Communications | Standard Communications: RS232/USB/RS485/SNMP/battery temperature compensation(optional) | ||
| Optional Configurations: Wi-Fi card, Parallel Port, LBS Port, GPRS card, Battery Temperature sensor, EMD and SMS alarms | |||
| Display | LCD + LED screen | ||
| Environmental | |||
| Operating Temperature | 0℃ ~ 40℃ | ||
| Storage Temperature | -25℃ ~ +55℃ (without Battery) | ||
| Relative Humidity | 0% ~ 95% (Non-condensing) | ||
| Altitude | ≤1000m, derating 1% for each additional 100m | ||
| Protection Level | IP 20 | ||
| Noise | ≤55dB (at 1m) | ||
| Others | |||
| Cabinet Dimensions (WxDxH)mm | 191x495x711(S), 191x495x350(H) | 191x495x515(H) | 191x495x515(H) |
| Packaged Dimensions (W x D x H) (mm) | 310x685x941(S), 318x617x475(H) | 285x593x618(H) | 285x593x618(H) |
| Net Weight(kg) | 64(S), 18.5(H) | 26.5(H) | 26.5(H) |
| Gross Weight(kg) | 72(S), 20(H) | 28(H) | 28(H) |
| Color | Black |
