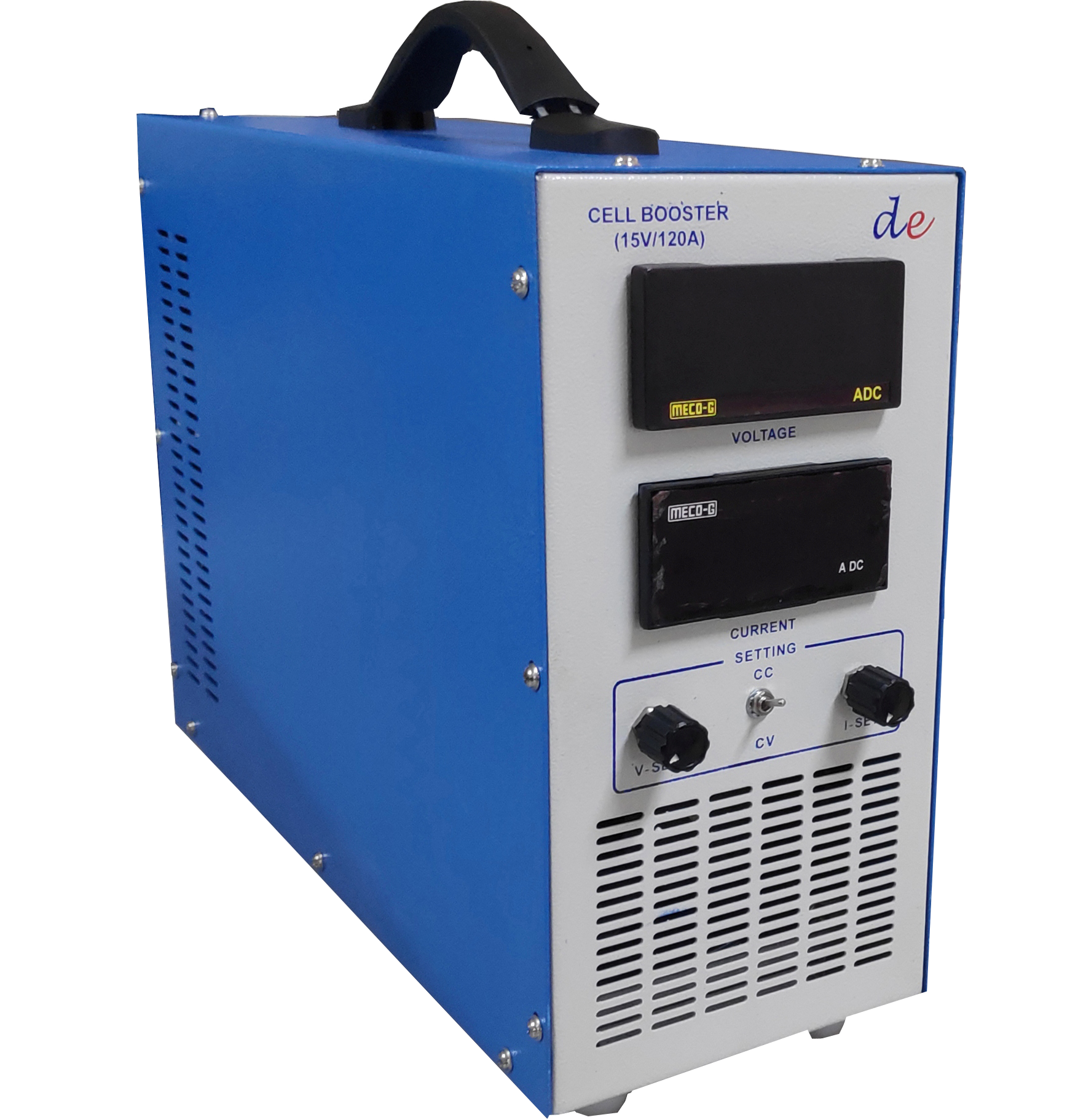

BC-CB-15V-120A

BC-CB-15V-120A Features

• Application for Battery Charging

• Works on 230V AC Mains

• High Efficiency Battery charging

• Suitable for Battery Bank of 12V

• This System is capable of charging the batteries in constant current mode

• Constant Voltage/Current selection through potentiometers

• Wide input range high efficiency

• Output Voltage adjust from 2V to 15V

• Output Current adjust from 1A to 120A

• MCB for I/P protection & ON/OFF purpose

• Digital panel meters for O/P voltage and current display

• Reverse polarity through fuse

• Portable tool for battery maintenance

• Soft Start on DC side

• Class-F insulation for all magnetic

• Automatic voltage regulation

• Filter circuit to eliminate ripple

• Output DC supply will be stable against variations in input mains AC supply.

• Charger housed in a cabinet with suitable output terminals.

• Protections:

  • AC Over Voltage

  • AC Under Voltage

  • DC Over Voltage

  • DC Under Voltage

  • Output Short-Circuit

  • Input surge Current

• Output supply protection and control:

  • Over load

  • Over Voltage

  • Short-Circuit
